CZ

2000 times insulating

than traditional methods

10 times stronger

thanks to its particular cover which resists to shearing and usury

60% of saving

on heating and cooling maximum prices

Ratio 1:17

1 cm of CZ board is equivalent to 1 cm of EPS

λ 0,002: W/(mk)

Thermal conductivity is certificated

A2

Fire resistance

2000 times insulating

than traditional methods

10 times stronger

thanks to its particular cover which resists to shearing and usury

60% of saving

on heating and cooling maximum prices

Ratio 1:17

1 cm of CZ board is equivalent to 1 cm of EPS

λ 0,002: W/(mk)

Thermal conductivity is certificated

A2

Fire resistance

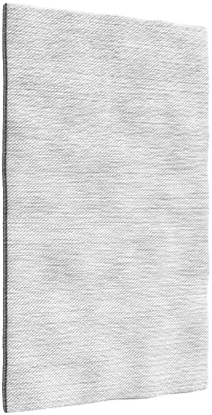

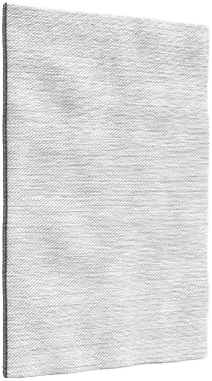

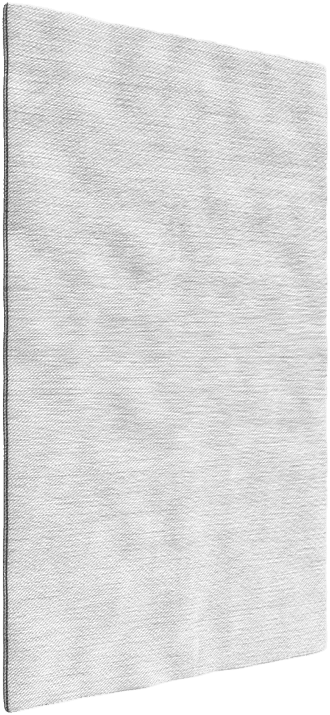

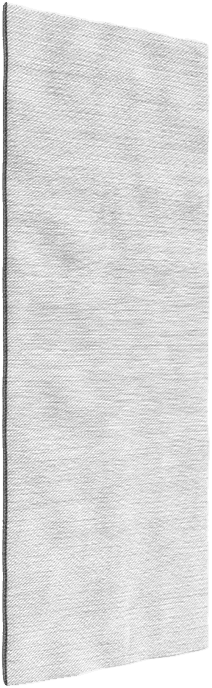

The Vacuum Insulated Panels are made by pressed minerals which are vacuumise using a particular cover.

CZ Panel’s core is mainly made of fiberglass which is covered by an aluminum and fiberglass coating. These materials make panels more stronger to shearing and usury than other vacuum products.
It’s cover make CZ Panel impermeable to gas and to steam increasing its length over time than a traditional panel.

Our panels are freed of all the air inside them until they reach very low pressures. This process reduces the mobility of the few water molecules left, reducing its thermal conductivity that remains stable at 0,002 W/mK.

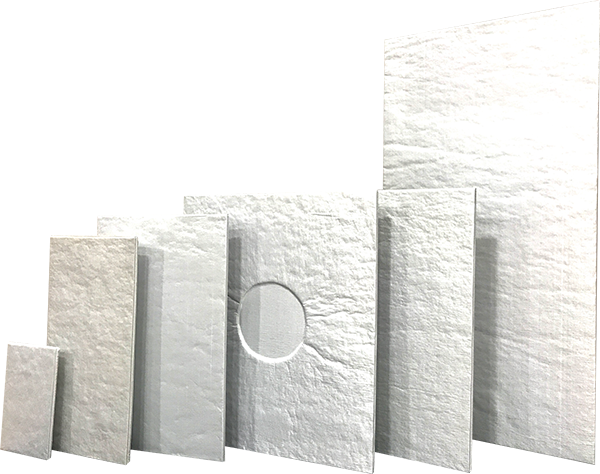

1000×550 mm

1000×350 mm

600×550 mm

550×350 mm

250×350 mm

150×350 mm

50×350 mm

1000×550 mm

1000×350 mm

600×550 mm

550×350 mm

250×350 mm

150×350 mm

50×350 mm

There are innumerous advantages that result in the use of Vacuum Panels

Firstly, their short depth: 3 cm is the minimum for CZ Vacuum Panels

Next, their mechanical resistance

The main concern about “external insulation” related to traditional tools is due to the weakness of their mechanical strength. Indeed, climate conditions and knocks can reduce their length over time.

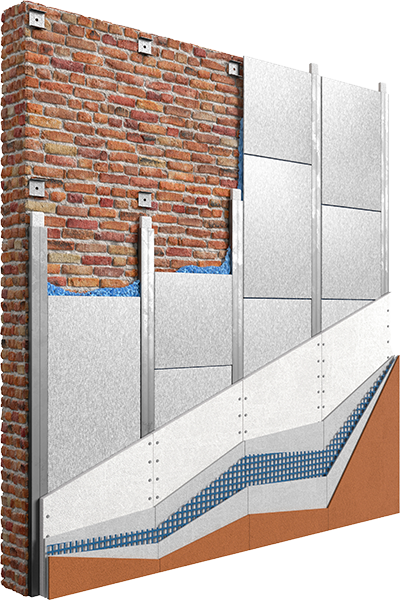

We have found a solution to this problem by developing a new installation system. Moreover, we also have made arrangements with International Companies which are leaders in the manufacturing of fiber cement slabs used to protect VACUUM Panels. As a result, the household’s walls will be unbreakable.

In this way, hailstorms, knocks and whirlwinds which are considered the first source of deterioration of traditional thermal insulation, now no longer represent a threat to our customers.

Not to mention the length over time of our houses.


Furthermore, Isolcore CZ panels fall under A2 band which means that they are incombustible and this makes them the right product when it comes to house construction.


Many people don’t give so much credit to this but when they go for EPS, polystyrene, graphite and polyurethane insulation materials they are placing combustible products on their homes. The consequences are well known thus it is recommended to limit these products purchasing.

CZ requires a specific installation and it can insulate any kind of building no matter the height.


Isolcore panels are easy to place especially because they are covered using the same false wall as it’s been using for 20 years.

Data Sheet

CAM
Environmental Declaration

CAM
Compliance Requirements

CAM
Third Party Assurance

DOP Performances

Safedety Data Sheet

Item Specifications
Exterior Walls

Item Specifications
Interior Walls

Installation Manual
External Wall

Installation Manual
Interior Walls

Installation Manual

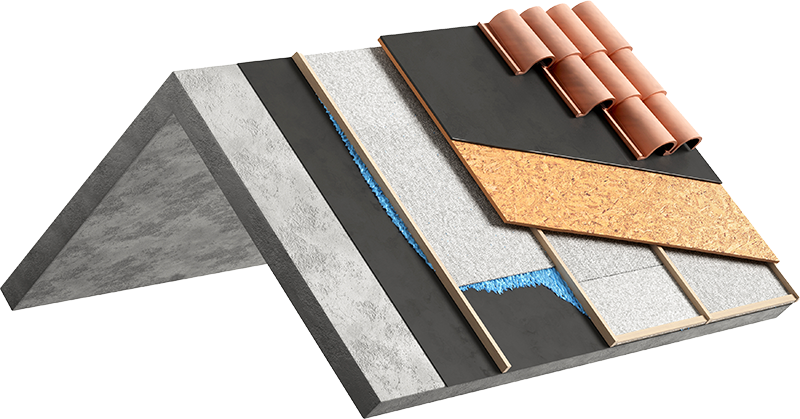

Covers
